The Project Aero Toyota Chaser JZX100
In 2020 we imported our very own JZX100 as a daily driver. With the intentions of keeping it as just that, things later spiralled out of control (as they do). We set out on a quest to build a 500HP family sedan, backed by the factory auto with the intention to run it down the 1/4 mile and take it to roll-racing

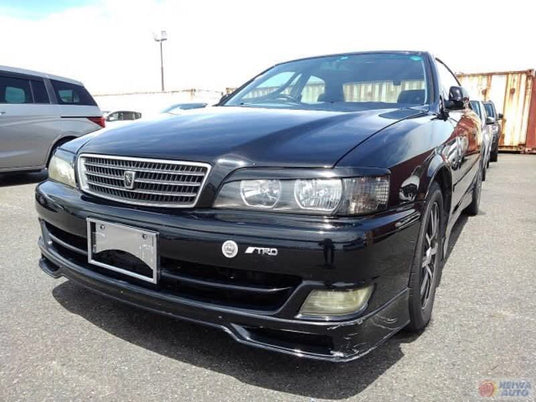

AT THE DOCK
We had looked at a few upcoming JZX100's at the auctions and our preference was Series 2. Manual wasn't preferred as we also had another JZX100 that was manual at the time, and this would become the daily driver. How UGLY did it look!
Jesse Streeter on Speed Dial
First things first, wheels and coilovers are a must. We had to make this thing look somewhat decent. So we got in touch with Jesse from Streeter Corporation in Japan and got ourselves some Work T7R's in 18x9.5+22 (Big ups to Jesse for the impeccable service and fast shipping!)

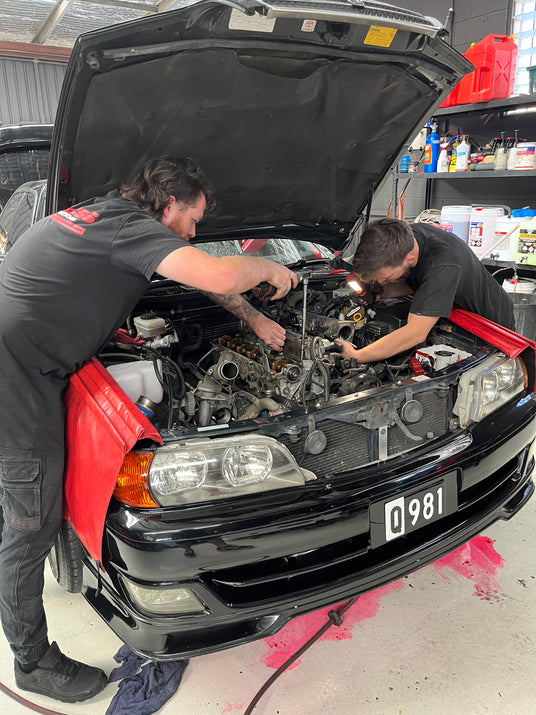

Development at Endless Auto Solutions

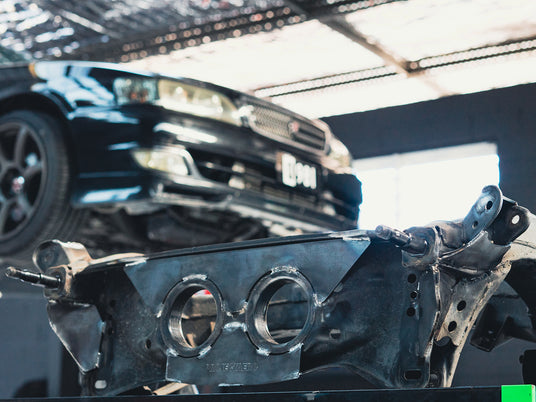

After about a year of having the car with wheels, coilovers, shortened uprights and an exhaust, we began developing a few of our products that you now see available at Project Aero. First cab off the rank, our subframe brace kit, followed shortly after by our Project Aero diff bushes
The itch for power
Ahh yes, this is the part where we went well and truly down the rabbit hole. The goal: 500+hp through a stock bottom end 1JZ VVTI with the A340 auto transmission
All the upgrades
You can see where this is going, can't you? ...
The mod list

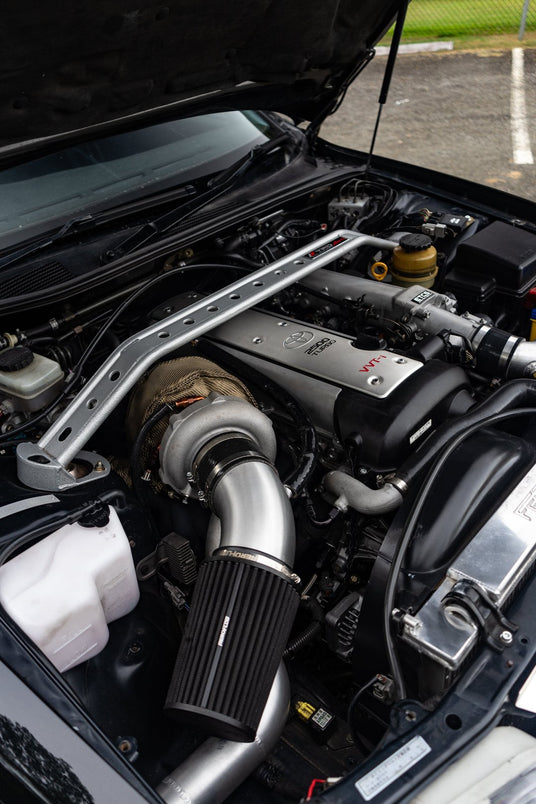

ENGINE BUILD SPECS:
- 1JZ VVTI Stock Bottom End
- Link Kurofune
- HKS F-Con patch harness to run the stock ecu for the auto
- Bosch 1650cc Injectors
- 6Boost Manifold
- Greddy Intercooler
- ARP Head Studs
- OEM Headgasket
- Fenix Radiator
- Aeroflow Trans Cooler
- 150A Alternator
- 50mm Turbosmart Gate
- ATI Balancer
- Haltech IC7 Dash
- Garret G30-900 0.83
- Kelford 264/272 + springs
- A340 with MV Automatics 3000 Converter + 1.5 Shift Kit
- Project Aero diff bushes
- Project Aero weld in subframe kit
- Project Aero cooling panel
- Project Aero brake master heat shield
- Project Aero air intake shield
- Project Aero bash plate
- GT86 Diff 4:11
578hp @ 27 PSI (E85)
The finished result: 430hp @ 19psi on 98 and 578hp @ 27psi on E85 through the A340 auto. What an ANIMAL! Although, sadly we never got the chance to take it to roll-racing or take it down the 1/4 mile, but based off our knowledge, it would run a very low 10 second 1/4 mile time. The car has since been sold as we have finished our development. Unfortunately we didn't have the time to enjoy it as much as we used to. A huge thank you to John and the team at Endless Auto Solutions for all their hard work and dedication to this build
